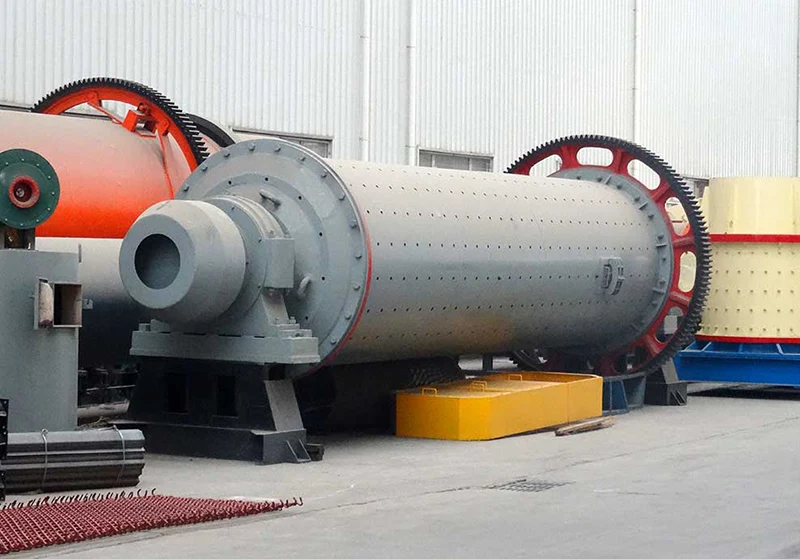

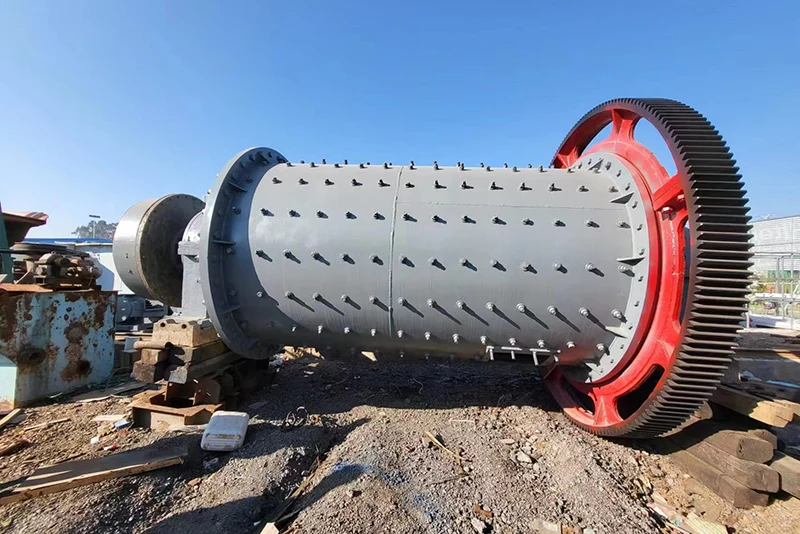

Energy-saving ball mill is suitable for grinding all kinds of ores and other materials, which is widely used in mineral processing, building materials and chemical industry, etc. It can be divided into two kinds of grinding methods: dry type and wet type. It can be divided into two types: dry and wet grinding. According to the different discharge methods, it can be divided into two types: lattice type and overflow type.
Purpose and use scope:
Energy-saving ball mill is the key equipment for crushing materials after they are crushed. It is widely used in cement, silicate products, new building materials, refractory materials, chemical fertiliser, black and non-ferrous metal beneficiation and glass ceramics and other production industries, dry or wet grinding of various ores and other grindable materials.
Energy Saving Ball Mill Working Principle:
This energy-saving ball mill is a horizontal cylindrical rotating device, gear drive along the outer edge, two bins, lattice type energy-saving ball mill. Materials from the feed device through the feed hollow shaft spiral evenly into the mill ** bin, the bin has a stepped liner or corrugated liner, filled with different specifications of steel balls, cylinder rotation generates centrifugal force will bring the steel ball to a certain height and then fall, the material to produce heavy impact and grinding effect. After the material reaches rough grinding in the ** bin, it enters the second bin through the single layer of bulkhead, which is set with flat lining board and steel balls inside to further grind the material. The powder is discharged through the discharge grate plate to complete the grinding operation.
Energy-saving ball mill structure characteristics:

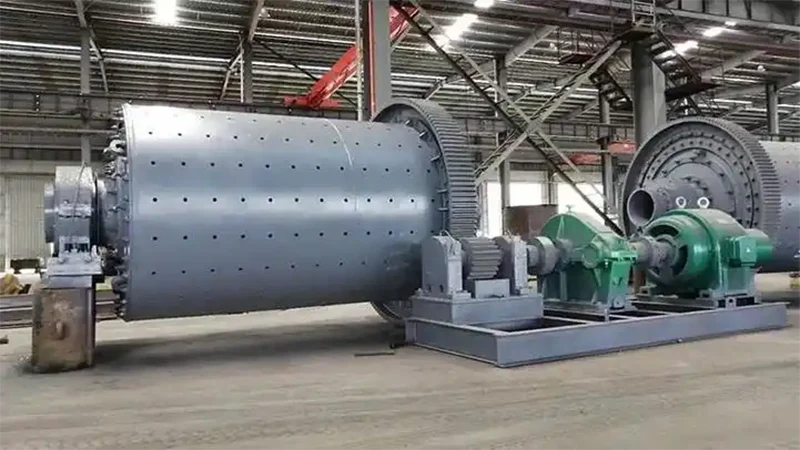

This energy-saving ball mill consists of feeding part, discharging part, rotary part, transmission part (reducer, small transmission gear, motor, electric control) and other main parts. The hollow shaft is made of cast steel, and the inner lining can be dismantled and replaced, the big gear of rotary is made of casting and hobbing, and the cylinder is set with wear-resistant lining plate, which has good wear resistance. The machine runs smoothly and works reliably.
