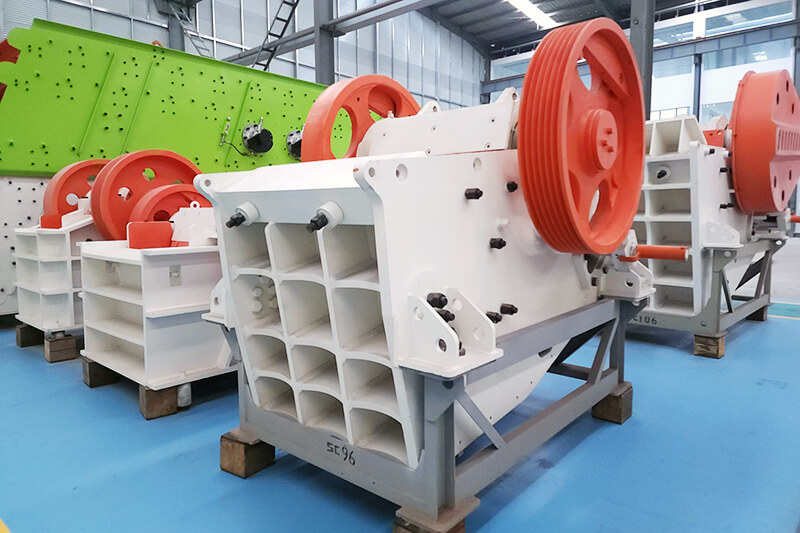

The SC series jaw crusher is a new generation of jaw crusher developed by our company with the introduction of foreign advanced technology. It uses better raw materials at home and abroad and key components provided by high-level manufacturers. It has high output, low energy consumption, structural Reliability, easy operation and maintenance, long service life and other advantages. It is widely used for crushing ores, rocks, slag, etc. whose compressive strength is not higher than 300MPa.
Select high-quality components, high output, low energy consumption, reliable structure, easy operation and maintenance, and long service life In the mining and construction crushing industry, the jaw crusher is at the front end of the production line. It can perform primary and secondary crushing of various hard and abrasive ores and rocks. It is the first process for crushing various minerals and rocks.
FEATURES
Deep cavity crushing, energy saving
Optimized deep cavity crushing has no dead ends, the feeding capacity and crushing efficiency are greatly improved, the energy saving of single machine is 15%-30%, and the energy saving of system is more than doubled.
Advanced technology and strong crushing force
Using advanced crushing technology and digital processing equipment, the internal structure is precise and the crushing capacity is enhanced.
Easy to maintain and improve production efficiency
The equipment adopts the centralized grease lubrication system, which is safe and reliable, convenient and fast for maintenance, and reduces downtime for maintenance.
Green environmental protection
Low noise, equipped with dust removal device, reduce dust generation, reduce pollution, and strictly comply with national environmental protection standards.
Professional service, considerate protection
Always takes "sincere customer service" as the source of the company's development, subdivides customer needs, and provides tailor-made machinery and equipment.
WORKING PRINCIPLE
The crushing method of the jaw crusher is a curved extrusion type, which is mainly composed of a frame, an eccentric shaft, a large pulley, a flywheel, a side guard, a toggle plate, a back seat of the toggle plate, a clearance adjustment screw, a return spring, a fixed jaw plate and a movable plate. Jaw plate and other parts. SC jaw crusher is usually driven by motor as the power source. When working, the motor drives the belt and pulley, and the movable jaw moves up and down through the rotation of the eccentric shaft. When the movable jaw rises, the angle between the toggle plate and the movable jaw becomes larger, thereby pushing the movable jaw to approach the fixed jaw, and at the same time, the material is crushed or Chop into pieces to achieve the purpose of breaking. When the movable jaw goes down, the angle between the toggle plate and the movable jaw becomes smaller, the movable jaw plate leaves the fixed jaw plate under the action of the pull rod and the spring, and the crushed material is discharged from the lower part of the crushing chamber. With the continuous rotation of the motor, the crusher performs periodic motion to crush the materials and discharge them to achieve mass production.
