Product information

Cement ball mill is mainly applied to the grinding of finished products and raw materials in cement plants, and is also suitable for metallurgy, chemical industry, electric power and other industrial and mining enterprises to grind all kinds of ores and other grindable materials. It can be used for open-flow grinding, and is also suitable for circulating circle-flow grinding with powder selector. Cement mill has the characteristics of strong adaptability to materials, continuous production, large crushing ratio, easy to adjust the speed of the fineness of grinding products. Cement ball mill can be used for both dry and wet production, or grinding and drying at the same time.

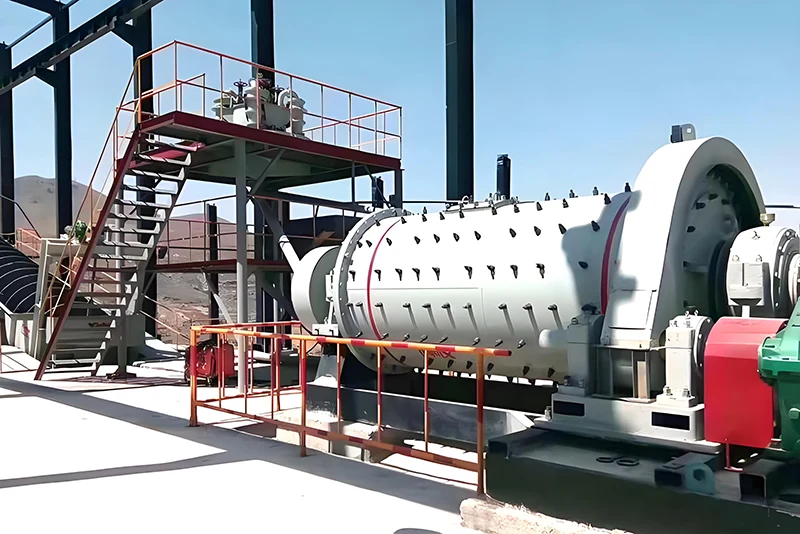

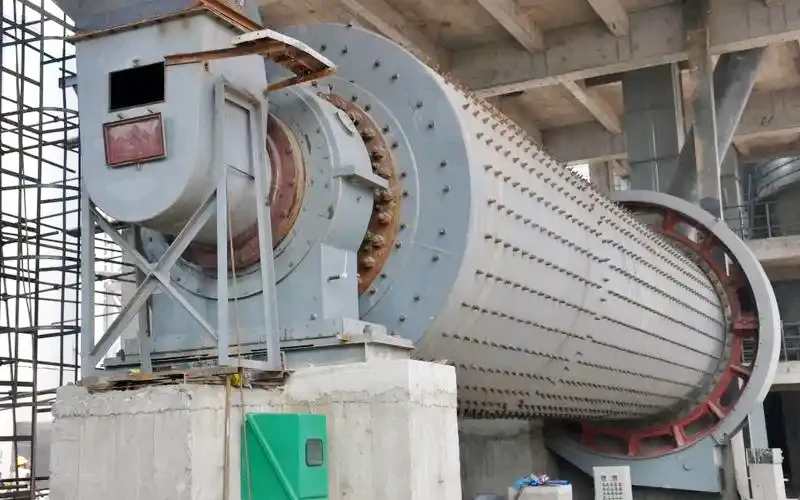

Cement ball mill

×

Technical Parameters

Model(m)	Mill Type	Transmission Type	Reducer		Power(kw)	Capacity(t/h)	Weight(t)
Model(m)	Mill Type	Transmission Type	Model	Speed ratio	Power(kw)	Capacity(t/h)	Weight(t)
φ1.83×7	Open flow	Edge	ZD60	4.5	245	6.5-8	36
φ2.2×7.5	Circular flow	Edge	ZD70	5	380	8-10	56
φ2.2×11	Open flow	Center	D110	35.5	630	12-13	104.6
φ2.2×13	Open flow	Center	D110	35.5	630	16-18	114
φ2.4×13	Open flow	Center	D110	35.5	800	20-23	171.5
φ2.6×13	Open flow	Center	MFY100	19.5	1000	28-32	149.7
φ3×9	Circular flow	Edge	D125	41.2	1000	28-36.5	136.4
φ3×11	Circular flow	Center	D140	42.8	1250	36-47	180
φ3.2×13	Open flow	Center	D140	36.5	1600	45-50	198
φ3.8×13	Open flow	Center	MFY250	16.5	2500	60-62	204
φ4.2×13	Open flow	Center	JQS3550	15.6	3530	85-87	254

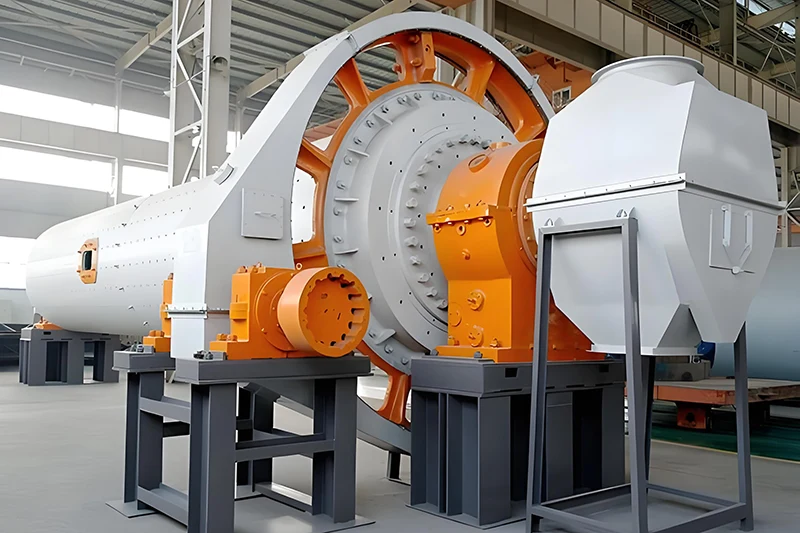

Production workshop

Delivery and transportation

XINDE has professional international transport partners who can provide international logistics services for sea freight, land freight, air freight, international multimodal transport and oversized cargo door to door.

FAQ

1. We have no experience in mining, wood pulverization, or building material processing, and we don't understand the entire production process. Can you provide technical and process guidance?
Yes, we have extensive experience with these technologies and can customize them to meet customer needs and provide comprehensive project management.
2.Can I visit your factory?
You are warmly welcome to visit our factory. We can provide you with the invitation you need to apply for a visa. And you will be met at the airport or railway station.
3.Can you produce customised equipment according to our requirements?
Yes, we can produce customised products according to your needs. People who use the equipment are more aware of the problems encountered during its use, so we will take customers' suggestions and improve the equipment.
4.What is the production and delivery time?
According to the production order, the total cycle of different equipment manufacturing is about 30-50 working days. After the production of equipment, you can send people to our factory for inspection, and we can also provide photos and videos to inspect the finished products.The modes of transport include railway, sea, road, combined (sea and railway transport), etc. Delivery time to each region is different: Southeast Asia: 7-15 days, Middle Asia: 20-30 days; Middle East: 20-40 days; Africa, America: 30-50 days; Russia and European countries: 25-50 days.
5.Can engineers be sent to the site to install and debug the equipment and provide training?
Yes, we can send experienced engineers to the site to supervise the installation and debug the production line. At the same time, we will train local personnel to operate and maintain the equipment.
6.What is the warranty period for the equipment?
The warranty period of our equipment is 12 months. If any parts have quality problems during the warranty period, we will replace them free of charge.
