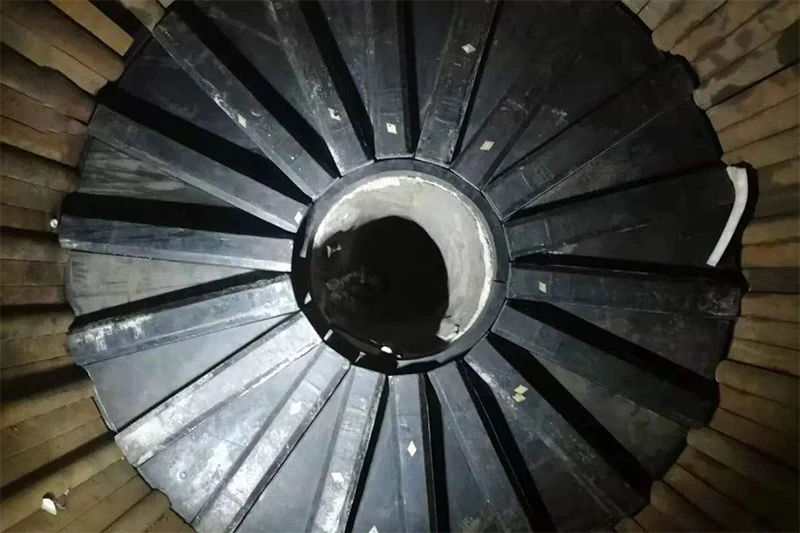

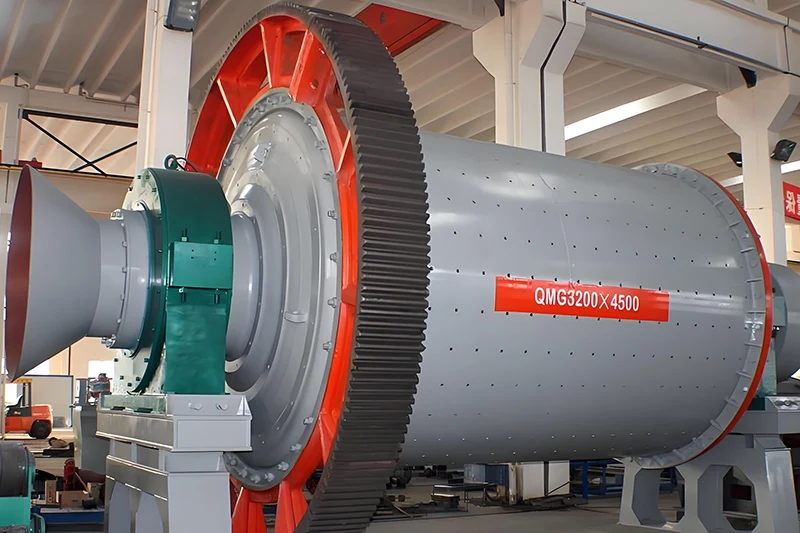

Rubber lined ball mills are mainly used in ceramic grinding, metal mines, non-metallic mines beneficiation. The service life and economic benefits of rubber liners are better than high manganese steel liners, in which the effect of reducing grinding energy consumption, steel consumption and mill noise is particularly significant. The liner is almost unaffected by the corrosive wear of the slurry, so it shows very high wear-resistant characteristics in the wet mill, and the service life increases exponentially, generally 1-2 times higher than the high manganese steel liner.
Rubber lined ball mills has the following advantages.
1. Reduce grinding energy (electricity) consumption, whether it is a magnetic separation plant or flotation plant ball mill using rubber liners, grinding power consumption is generally reduced by 10-15%.
2. Reduce mill noise, high manganese steel liner mill noise is 100-110dB, greatly exceeding the provisions of the environmental protection, seriously endangering the hearing health of workers, due to the rubber liner has a strong damping and absorption effect, the mill noise can be reduced by 10-15dB, significantly improving the grinding work environment, the basic protection of workers' physical and mental health.
3. Reduce the consumption of steel balls, wet grinding process, steel ball wear is extremely serious, and is one of the costs of mineral processing production costs, the test shows that the use of rubber liner mill ball consumption is reduced by about 0.20Kg/t.
4. Reduce the weight of the liner, high manganese steel liner weight of a piece of more than 100kg, while the rubber liner a piece of only 20Kg or so, greatly reducing the labour intensity of the rubber liner installation, to ensure the safety of the workers, but also to improve the mill transmission gear force conditions, obviously extend the service life of the pinion.

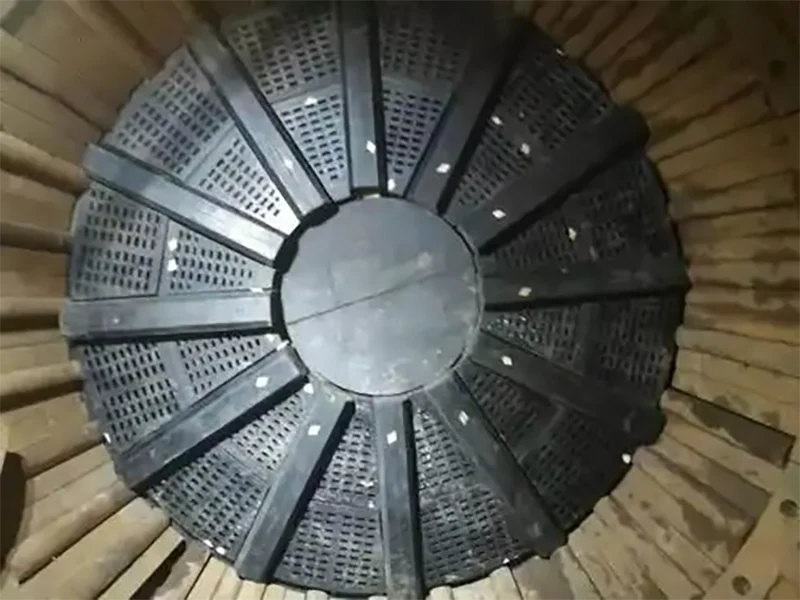

5. Reduce milling time, ball mill steel lattice plate castor holes in the discharge is often blocked, both affecting the processing capacity and product fineness, but also affects the normal production of the mill, but the rubber lattice plate basket holes basically do not clog, no need to stop the mill to clean up the castor holes, and rubber liner mill and no leakage of slurry, no need to stop for maintenance, so the time of milling time is significantly reduced to improve the operating rate of the mill and the processing capacity.
