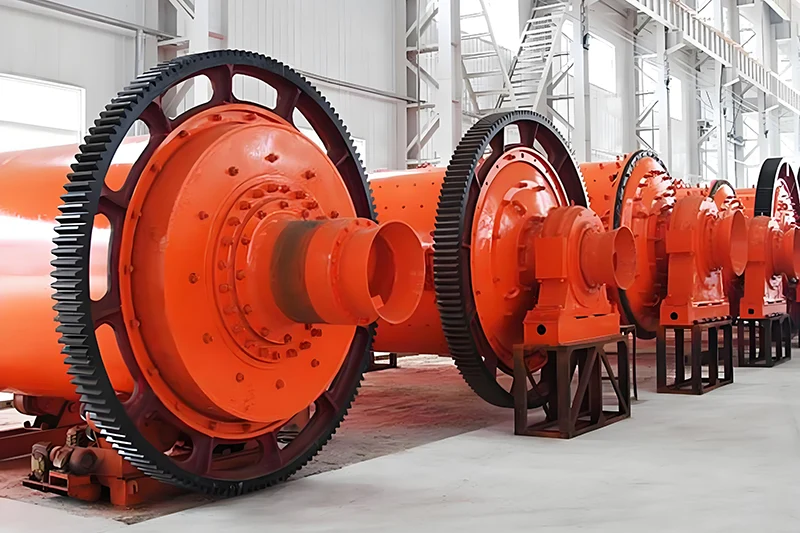

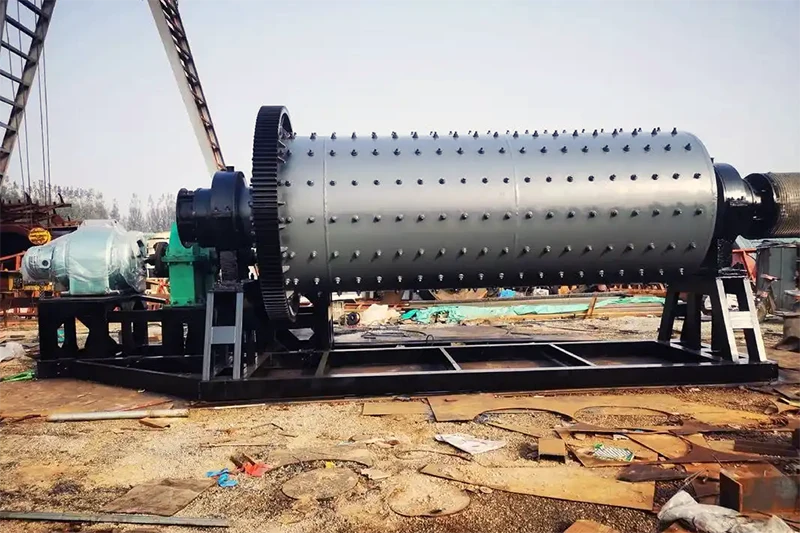

Dry Ball Mill

Capacity:0.65-50t/h

​Dry ball mill production process does not need to add water, is a straight cylinder, but also installed with induced draft device, dust exhaust pipe and dust collector.

Product information

Dry ball mill production process does not need to add water, is a straight cylinder, but also installed with induced draft device, dust exhaust pipe and dust collector. Our factory can design and manufacture other types and specifications of ball mills according to the requirements of users, and also according to the user's ore samples and output and particle size requirements, through grinding experiments and calculations, to determine the appropriate specifications of the type, design of the working state of the ball mill, so that it does not have insufficient function, and to ensure that the output and particle size requirements.

Dry Ball Mill

Dry Ball Mill

× Enlarged Image

Technical Parameters

ModelCylinder speed (r/min)Ball loading (t)Feeding size(mm)Output size(mm)Capacity(t/h)Power(kw)Weight(t)
Ø900×1800381.5≤200.075-0.890.65-218.53.6
Ø900×3000382.7≤200.075-0.891.1-3.5224.6
Ø1200×2400323.8≤250.075-0.61.5-4.84512.5
Ø1200×3000325≤250.074-0.41.6-54512.8
Ø1200×4500327≤250.074-0.41.6.5.85513.8
Ø1500×3000278≤250.074-0.42-59017
Ø1500×45002714≤250.074-0.43-611021
Ø1500×57002715≤250.074-0.43.5-813224.7
Ø1830×30002411≤250.074-0.44-1018028
Ø1830×64002423≤250.074-0.46.5-1521034
Ø1830×70002425≤250.074-0.47.5-1724536
Ø2200×55002130≤250.074-0.410-2237048.5
Ø2200×65002131≤250.074-0.414-2638052.8
Ø2200×75002133≤250.074-0.416-2938056
Ø2400×70002134.5≤250.074-0.418-3240062.8
Ø2400×800020.436≤250.06-0.0818-3641081.2
Ø2700×36001837≤25<0.085041077.5




Production workshop

Delivery and transportation

XINDE has professional international transport partners who can provide international logistics services for sea freight, land freight, air freight, international multimodal transport and oversized cargo door to door.

  • Доставка и транспортировка
  • Доставка и транспортировка
  • Доставка и транспортировка
  • Доставка и транспортировка
  • Доставка и транспортировка
  • Доставка и транспортировка

FAQ

  • 1. We have no experience in mining, wood pulverization, or building material processing, and we don't understand the entire production process. Can you provide technical and process guidance?

    Yes, we have extensive experience with these technologies and can customize them to meet customer needs and provide comprehensive project management.

  • 2.Can I visit your factory?

    You are warmly welcome to visit our factory. We can provide you with the invitation you need to apply for a visa. And you will be met at the airport or railway station.

  • 3.Can you produce customised equipment according to our requirements?

    Yes, we can produce customised products according to your needs. People who use the equipment are more aware of the problems encountered during its use, so we will take customers' suggestions and improve the equipment.

  • 4.What is the production and delivery time?

    According to the production order, the total cycle of different equipment manufacturing is about 30-50 working days. After the production of equipment, you can send people to our factory for inspection, and we can also provide photos and videos to inspect the finished products.The modes of transport include railway, sea, road, combined (sea and railway transport), etc. Delivery time to each region is different: Southeast Asia: 7-15 days, Middle Asia: 20-30 days; Middle East: 20-40 days; Africa, America: 30-50 days; Russia and European countries: 25-50 days.

  • 5.Can engineers be sent to the site to install and debug the equipment and provide training?

    Yes, we can send experienced engineers to the site to supervise the installation and debug the production line. At the same time, we will train local personnel to operate and maintain the equipment.

  • 6.What is the warranty period for the equipment?

    The warranty period of our equipment is 12 months. If any parts have quality problems during the warranty period, we will replace them free of charge.
