Product information

Performance Features

1. More than 45% than the rate of ordinary pulverizer, it is the improved and alternative type of ordinary pulverizer.

2.0.8, 1mm screen can work at full capacity, without blocking the machine and then without changing the screen under the premise of coarse and fine crushing.

3. The number of hammers is increased by 2-3 times, which can realize the multi-purpose of one machine, simplify the process arrangement and save the investment cost.

4. Optimized design for multi-fiber, high moisture, high oily raw materials for fine crushing, especially for dried fish, cotton meal, corn cobs, shrimp shells, soybean hulls, materials and high moisture content of corn, etc. (17-24%).

5. When the pulverizer body vibrates, the particle size is more uniform, and can be used below 1.2mm and large aperture screen to produce coarse, medium, fine and ultra-fine powders, with higher efficiency and no paste sieve phenomenon.

6. Apply to feed processing, grease, chemical, food processing, brewing and other industries title granular, powdery materials crushed.

×

Technical Parameters

Model	800~1100	1000~1100	1300~1100	1500~1100
Power (kW)	90	132	160	315
Production Capacity (t/h)	4~6	6~8	10~12	12~15
Rotor Diameter (mm)	1100	1100	1100	1100
Speed (r/min)	1450	1450	1450	1450
Hammer (piece)	60	70	90	100
Feed Inlet Size (mm)	1000×600	1000×750	1300×750	1500×750
Host Size (mm)	2910×1840×4000	3000×1840×4000	3410×1840×4100	3700×1840×4200

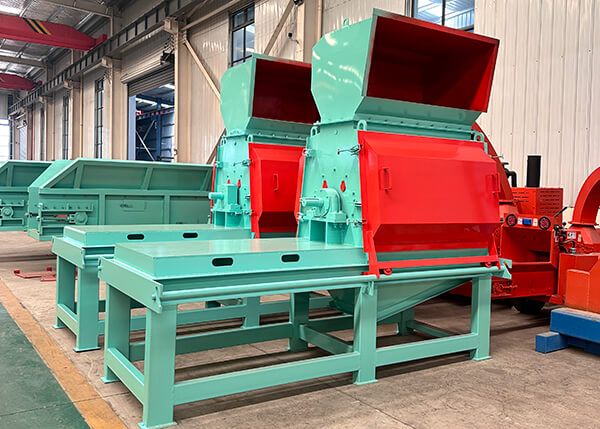

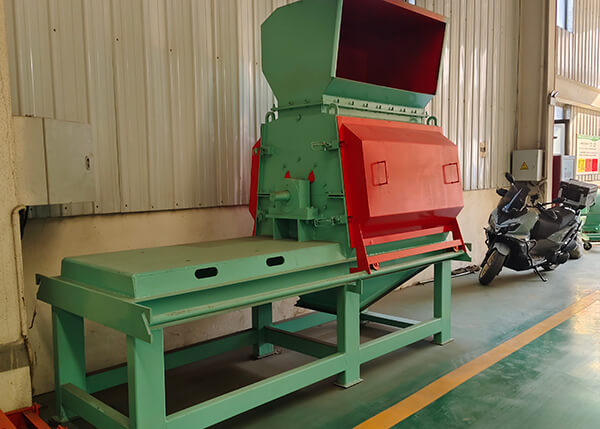

Production workshop

Delivery and transportation

XINDE has professional international transport partners who can provide international logistics services for sea freight, land freight, air freight, international multimodal transport and oversized cargo door to door.

FAQ

1. We have no experience in mining, wood pulverization, or building material processing, and we don't understand the entire production process. Can you provide technical and process guidance?
Yes, we have extensive experience with these technologies and can customize them to meet customer needs and provide comprehensive project management.
2.Can I visit your factory?
You are warmly welcome to visit our factory. We can provide you with the invitation you need to apply for a visa. And you will be met at the airport or railway station.
3.Can you produce customised equipment according to our requirements?
Yes, we can produce customised products according to your needs. People who use the equipment are more aware of the problems encountered during its use, so we will take customers' suggestions and improve the equipment.
4.What is the production and delivery time?
According to the production order, the total cycle of different equipment manufacturing is about 30-50 working days. After the production of equipment, you can send people to our factory for inspection, and we can also provide photos and videos to inspect the finished products.The modes of transport include railway, sea, road, combined (sea and railway transport), etc. Delivery time to each region is different: Southeast Asia: 7-15 days, Middle Asia: 20-30 days; Middle East: 20-40 days; Africa, America: 30-50 days; Russia and European countries: 25-50 days.
5.Can engineers be sent to the site to install and debug the equipment and provide training?
Yes, we can send experienced engineers to the site to supervise the installation and debug the production line. At the same time, we will train local personnel to operate and maintain the equipment.
6.What is the warranty period for the equipment?
The warranty period of our equipment is 12 months. If any parts have quality problems during the warranty period, we will replace them free of charge.
