Branch Crusher-Zhengzhou Xinde Environmental Protection Machinery Co., Ltd.

Product information

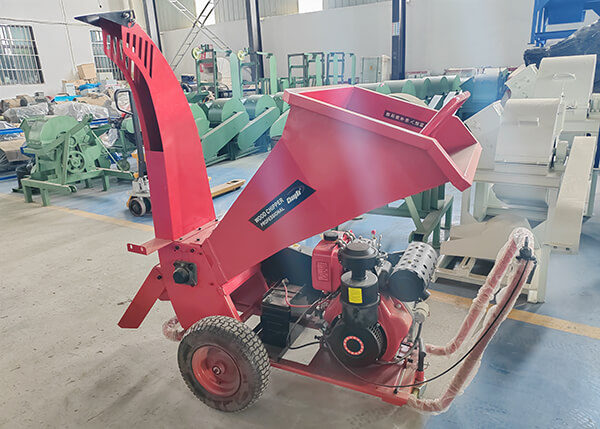

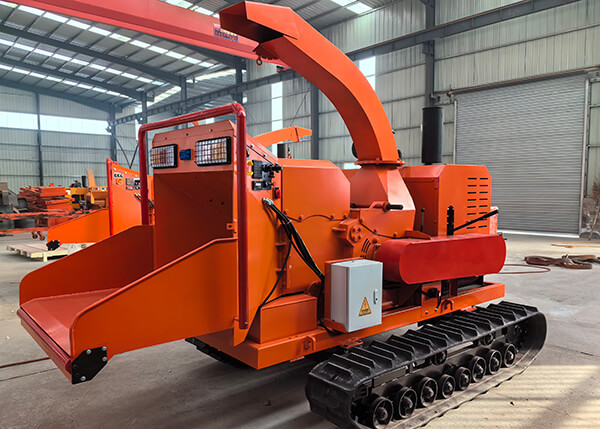

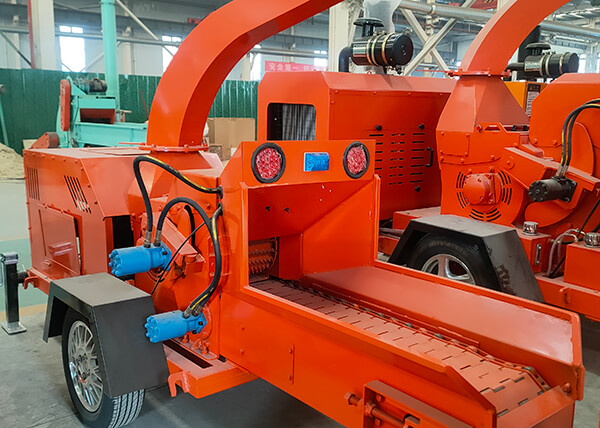

Tree branch crusher is a kind of mechanical equipment that can crush and shred tree branches (especially mulberry branches, fruit tree branches), logs, corn stalks, rushes, etc. at one time. After crushing, it can be used as mulch, garden bed base, organic fertilizer, edible fungi, biomass power generation, also can be used for high density board, particle board, paper industry and so on. After crushing can be sprayed directly into the transport vehicle, this fruit tree branch crusher using diesel engine or motor as a power, can be crushed at any time, anywhere branches, easy to move, can be towed, raw materials for a wide range of applications, high yield, easy to operate, easy to maintain.

×

Technical Parameters

Model	PD-6130	PD-6130D	PD-6145	PD-6145D
Main Shaft Speed (r/min)	2600	2600 / 600	2200	2200
Power Requirement	22-37 kW	32/55 HP	55-75 kW	80-102 HP
Starting Method	Control Cabinet	Electric Start	Control Cabinet	Electric Start
Cutter Roller Diameter (mm)	300	300	500	500
Inlet Size (mm)	310×200	310×200	450×380	450×380
Max. Material Diameter (mm)	≤300
Discharge Direction	360° Quick Adjustment
Output (t/h)	1-3	1-3	2-5	2-5

Production workshop

Delivery and transportation

XINDE has professional international transport partners who can provide international logistics services for sea freight, land freight, air freight, international multimodal transport and oversized cargo door to door.

FAQ

1. We have no experience in mining, wood pulverization, or building material processing, and we don't understand the entire production process. Can you provide technical and process guidance?
Yes, we have extensive experience with these technologies and can customize them to meet customer needs and provide comprehensive project management.
2.Can I visit your factory?
You are warmly welcome to visit our factory. We can provide you with the invitation you need to apply for a visa. And you will be met at the airport or railway station.
3.Can you produce customised equipment according to our requirements?
Yes, we can produce customised products according to your needs. People who use the equipment are more aware of the problems encountered during its use, so we will take customers' suggestions and improve the equipment.
4.What is the production and delivery time?
According to the production order, the total cycle of different equipment manufacturing is about 30-50 working days. After the production of equipment, you can send people to our factory for inspection, and we can also provide photos and videos to inspect the finished products.The modes of transport include railway, sea, road, combined (sea and railway transport), etc. Delivery time to each region is different: Southeast Asia: 7-15 days, Middle Asia: 20-30 days; Middle East: 20-40 days; Africa, America: 30-50 days; Russia and European countries: 25-50 days.
5.Can engineers be sent to the site to install and debug the equipment and provide training?
Yes, we can send experienced engineers to the site to supervise the installation and debug the production line. At the same time, we will train local personnel to operate and maintain the equipment.
6.What is the warranty period for the equipment?
The warranty period of our equipment is 12 months. If any parts have quality problems during the warranty period, we will replace them free of charge.
